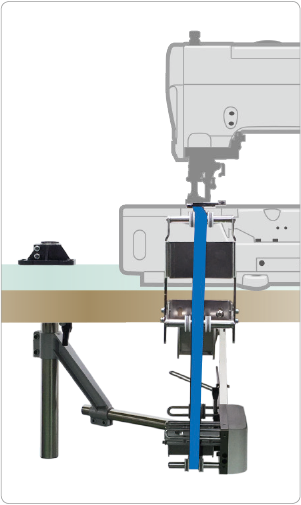

Jeans Fly-facing Auto-Serging Machine

Choose model

Choose Model

Model

ASK-ESG100

Collocation Machine Head

737K-504M

Sewing Speed

Max 4000 SPM

Needle Type

DC×27 #11

Stitch Length

3.8mm

Overedge Width

4mm(4.8mm/5.6mm)

Presser Foot Lifting

6mm

Stroke

24.5

Differential Ratio

0.7∼2.0

Air Consumption

90L/min

Air Pressure

0.5 Mpa

Voltage

Single Phase AC200~240V 50/60Hz

Dimensions

(W)810×(D)710×(H)1600mm ( With table and thread stand )

Production Capacity

Total stitch: 56、Stitch length: 3.8mm、Sewing speed: 3000 SPM、
Circle time: 3.5 sec、Output: 5 sec
