ELASTIC/ LACE ATTACHING WITH RIGHT SIDE FABRIC TRIMMER

Choose model

Choose Model

SPECIFICATION
① Model④ Function⑦ Needle gauge
② Series⑤ Needle Plate Finger⑧ Device
③ Covering Types⑥ Needle Numbers⑨Motor U:U Series H:H Series

F007K-W522-⑥⑦/FR/FFC244.0/4.81.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/FFC355.6/6.41.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/FE244.0/4.81.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/FE355.6/6.41.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/SMK244.0/4.81.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/SMK355.6/6.41.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/STC244.0/4.81.6~4.20.5~1.354500
F007K-W522-⑥⑦/FR/STC355.6/6.41.6~4.20.5~1.354500

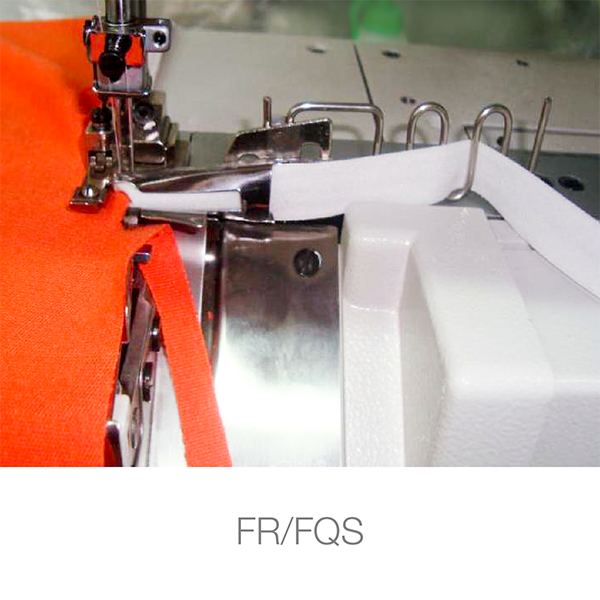

ELASTIC/ LACE ATTACHING WITH RIGHT SIDE FABRIC TRIMMER

Top feeding devices ensure even length and tension controlled by electric digital controller, with right side fabric trimmer for elastic or lace attaching smoothly and properly on women’s underwears.

FFC: Mechanic type tape feeding.
FE: Simple electric type tape feeding.

SMK:
Electric metering type tape feeding
SMK1-C-01 with synchronizer for simple servo motor or clutch motor
SMK1-C-02 Connected to servo motor by encoder cable

STC:
Tension sensor type tape feeding
STC1-U-01 with synchronizer for simple servo motor or clutch motor
STC1-U-02 Connected to servo motor by encoder cable

OPTIONAL DEVICE

FAC ,FEC ,LF-A ,LS-A
