F007K(D)-W222-□□□/FQ244.0/4.80.5~1.31.6~4.25UYX128GAS#106000
355.6/6.40.5~1.31.6~4.25UYX128GAS#106000
F007K(D)-W222-□□□/FFD244.0/4.80.5~1.31.6~4.25UYX128GAS#106000
355.6/6.40.5~1.31.6~4.25UYX128GAS#106000
F007K(D)-W222-□□□/FFP244.0/4.80.5~1.31.6~4.25UYX128GAS#106000
355.6/6.40.5~1.31.6~4.25UYX128GAS#106000

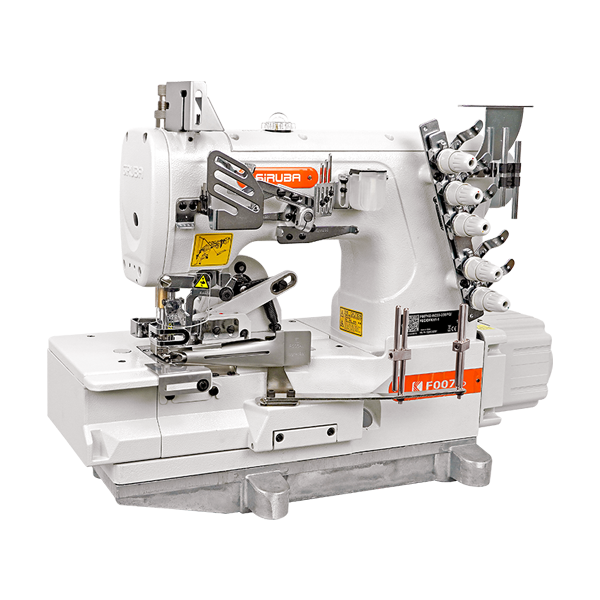

FQ:TAPE BINDING

For tape binding on openings of leg or neck of underwears, T-shirts, etc… Also can attach electric(FEC) or pneumatic(FAC) tape cutter to save tape and increase sewing efficiency.

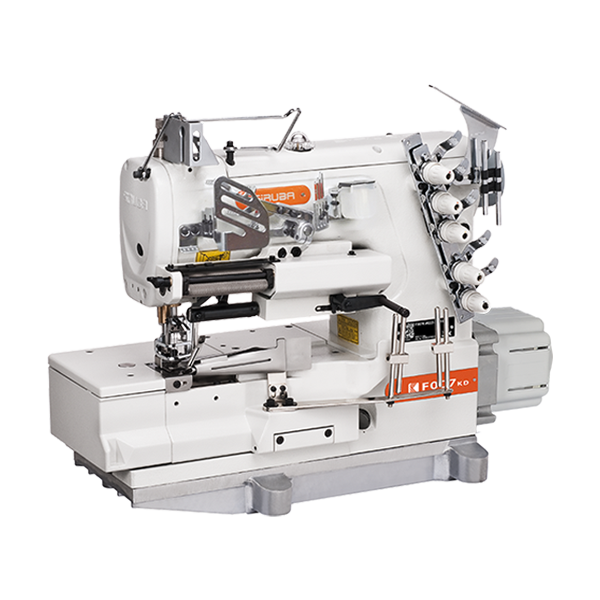

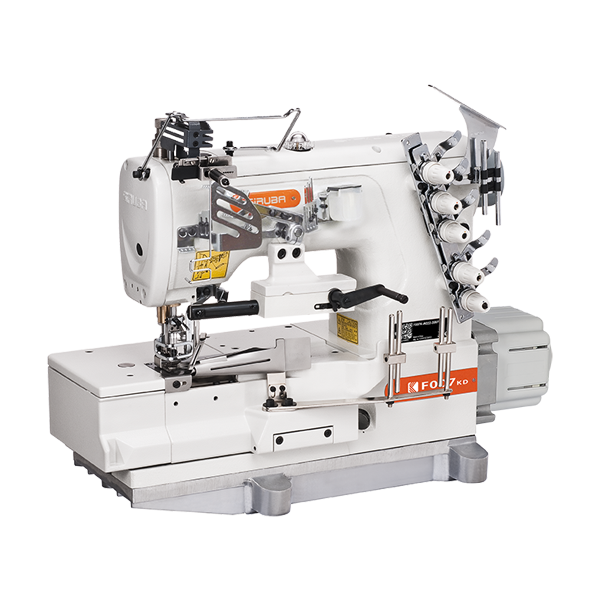

FFD/ FFP:TAPE BINDING WITH ELASTIC BAND

Top feeding device controls the elastic band’s tension. Elastic band right-left position controller (by knee-pushing) sets the materials joining at the beginning and ending of waistband, leg opening of briefs…etc.
FFD: Gearbox type for accurate tension control
FFP: Spring type for simple tension control

Optional device for the above models FSC: Sensor type rear cutter with direct-drive servo motor

OPTIONAL DEVICE

FA,LF-A,FAC,FEC,LS-A

FQ (K)
TAPE BINDING

For tape binding on openings of leg or neck of underwear,T-shirt etc.
1.If purchased machine with FQ, we will also attach FG. If purchase FQ device only, no FG attached.
2.Ways to order the device:
    (1) F007KD-W222-240/FQ…..will includes the whole FQ device and FG subassembly.
    (2) F007KD-W222-240…..only equipped with FQ gauge set, no FQ subassembly or FG.
    (3) F007KD-W222-240/FQP….will includes FQ and FG subassembly, no binder.
3.Binder’s standard opening size is 1-3/8″ wide and finished size is 1/2″ wide in 3 folds. Please remark if need another size when ordering, delivery date and cost will be re-calculated.

Available Model:
F007K-W222,F007KD-W222

Self-installation : Y
